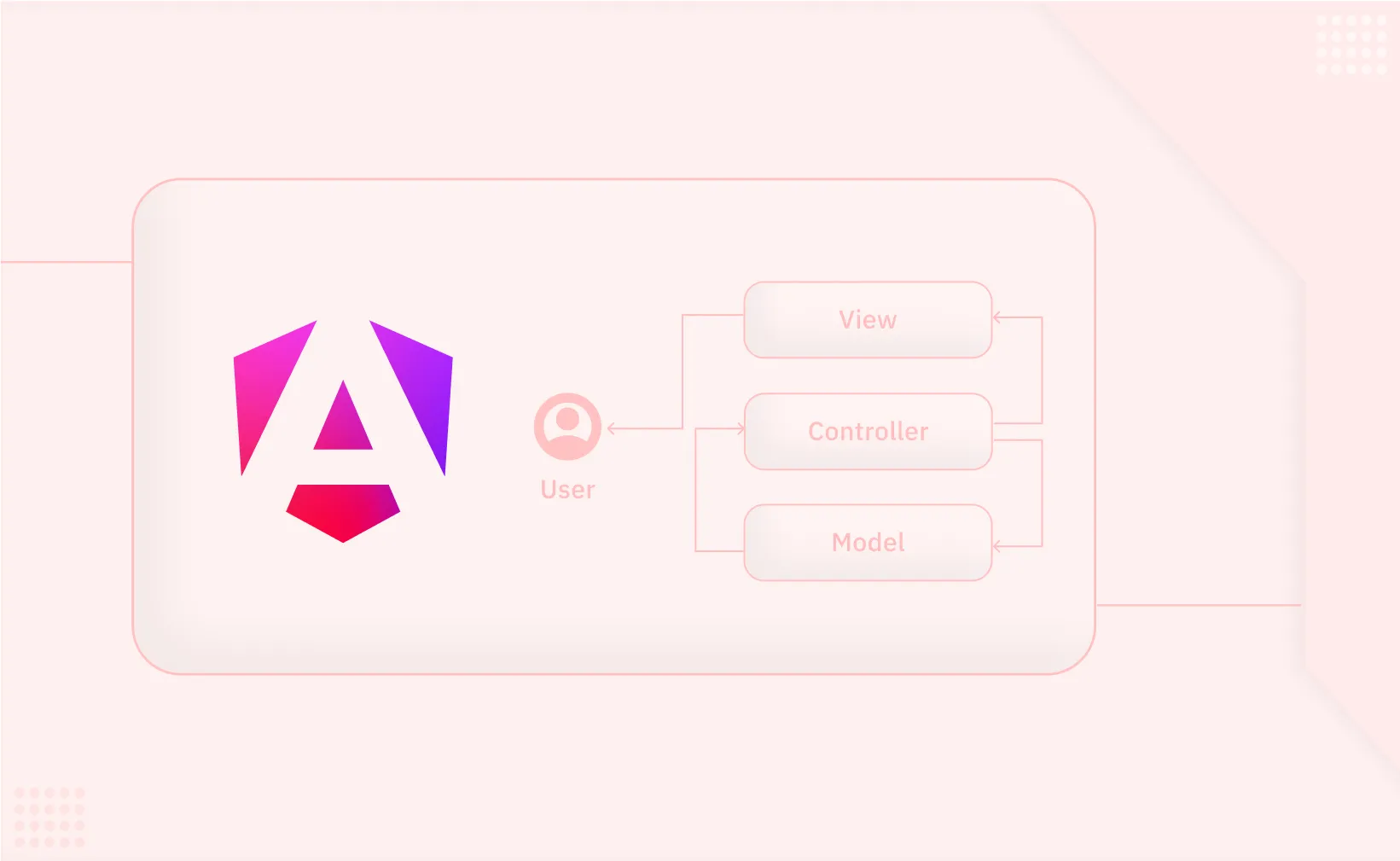

Angular Integration with Mvc Backend Frameworks

    May 5, 202510 min read73 viewsUpdated:May 7, 2025
    Angular Integration with Mvc Backend Frameworks

    Brief:
    The content explores how Angular integrates with the MVC pattern to enhance app performance and structure. It explains model binding, compatibility with backend frameworks, and the benefits of using Angular for scalable, responsive web applications.

    Introduction

    The Model-View-Controller (MVC) design pattern, also known as the Model-View-Controller pattern, is one of the most popular software design patterns used to structure web applications. Although Angular doesn't strictly follow MVC, it borrows key principles from it and uses them to manage data flow efficiently in applications. The data binding mechanism in Angular helps to synchronise the model and the view, ensuring seamless interaction between the UI and business logic.

    What is the MVC architecture?

    MVC (Model-View-Controller) is a widely adopted architectural pattern that divides an application into three interconnected components:

    1. Model: Represents the data and business logic. It retrieves and manipulates data as required by the application.

    2. View: The UI layer, which displays the model data to the user and sends user inputs to the controller.

    3. Controller: Acts as an intermediary between the model and the view. It listens to user actions, processes the inputs, updates the model, and reflects the changes in the view.

    The key to MVC’s success lies in the separation of concerns: each part has a distinct role, making the Angular architecture and application more modular and easier to maintain, especially regarding application logic. Angular uses a component-based architecture but still applies many of the core ideas from the MVC pattern.

    Angular's Model Binding

    In Angular, model binding is the process of connecting the application data model to the view. Angular provides several types of binding mechanisms that allow for data synchronisation between the model and the view, ultimately making dynamic web applications, such as an Angular app, more responsive.

    Types of Data Binding in Angular

    Angular supports four types of data binding:

    1. Interpolation ({{ }}): One-way binding from the model to the view.

    2. Property Binding ([property]="value"): One-way binding to set the properties of HTML elements.

    3. Event Binding ((event)="handler()"): One-way binding to listen for user events.

    4. Two-Way Binding ([(ngModel)]="value"): Two-way binding, where the model and view stay synchronised.

    Each of these binding techniques plays a crucial role in implementing the Model-View-Controller (MVC) pattern in Angular. They allow developers to manipulate data, send user input to the component, and display the complete application of data on the UI with minimal effort, often utilising dependency injection.

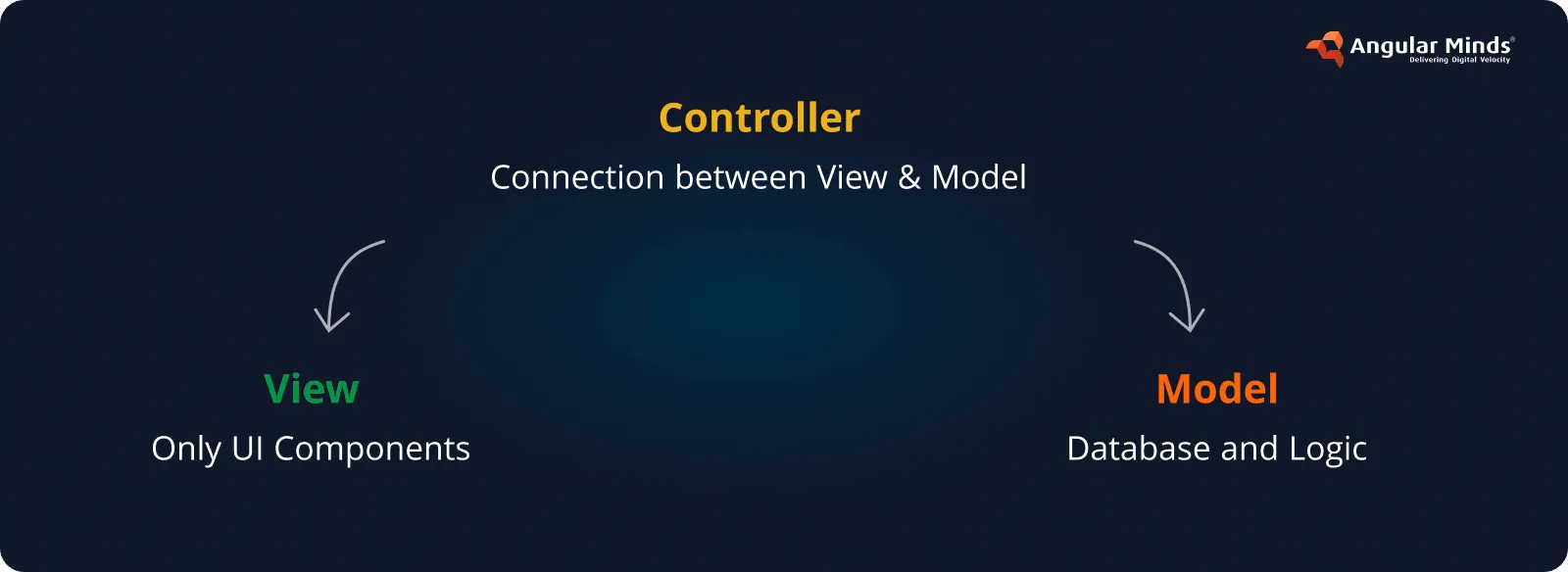

    How Angular Uses the MVC Pattern

    How Angular Uses the MVC Pattern

    While Angular’s component-based architecture doesn’t strictly follow the MVC architecture, it inherently adopts some of the concepts of MVC in its structure. Here’s a conceptual overview of how the components map to MVC elements:

    MVC Component

    Angular Equivalent

    Model

    Data models, services, and state

    View

    HTML templates (.html files)

    Controller

    Angular Components (.ts files)

    Model in Angular:

    The model in Angular is typically represented by application data models, which are TypeScript interfaces or classes. The model contains the application’s business logic and represents the data used by the application for business operations. This data model could be anything from user information to application-specific data.

    Example:

    export interface User { id: number; name: string; email: string; }

    View in Angular:

    The view is represented by HTML templates in Angular. These templates define the UI structure and dynamically render data using Angular’s binding mechanisms. The view listens for changes in the model and automatically updates when the model changes, thanks to Angular’s data binding system.

    Example:

    <div> <h1>{{ user.name }}</h1> <p>{{ user.email }}</p> </div>

    Controller in Angular:

    The controller in Angular is often integrated with the component itself. Each Angular component handles the logic associated with the view, updates the model, and listens for user input as users interact with the application. Components are responsible for processing and receiving user input as actions, retrieving data from services, and modifying the view accordingly.

    Example:

    import { Component } from '@angular/core';
    import { UserService } from './user.service';
    import { User } from './user.model';

    @Component({
      selector: 'app-user',
      templateUrl: './user.component.html',
      styleUrls: ['./user.component.css']
    })
    export class UserComponent {
      user: User = { id: 1, name: '', email: '' };

      constructor(private userService: UserService) {}

      ngOnInit(): void {
        this.user = this.userService.getUser();
      }
    }


    In this example, the controller (i.e., the UserComponent) interacts with the model (data from the UserService) and updates the user interface of the view by binding the user model to the template.

    Looking for Angular and MVC backend integration? Work with Angular MInds the expert Angular app development company for seamless, scalable solutions. Get in touch now.

    Data Binding: Synchronizing Model and View

    Angular makes it easy to synchronize data between the model and presentation layer view using data binding. The key concept in data binding is that the view is automatically updated when the model changes.

    This is particularly useful in dynamic web applications, where user actions or data changes require the UI to be updated without manual intervention.

    One-Way Data Binding

    One-way data binding in Angular allows the model to update the view. This means that when data in the component’s model changes, the view reflects those changes automatically.

    • Interpolation and property binding are examples of one-way data binding.

    Example (Interpolation):

    <h1>{{ title }}</h1>

    In this case, the data (title) in the component’s model is displayed in the view using interpolation.

    Two-Way Data Binding

    Two-way data binding in Angular allows the model and view to stay synchronised, meaning that user input in the view can also modify the model. This is essential for forms, where the user’s actions update both the model and the view.

    • ngModel is used for two-way binding.

    Example (Two-Way Binding):

    <input type="text" [(ngModel)]="name"> <p>Hello, {{ name }}!</p>

    Here, the input field updates the name in the model, and any changes to the name in the component automatically update the view.

    Angular and MVC: Best Practices for Building Maintainable Applications

    While Angular doesn’t strictly enforce the MVC pattern, developers can still follow the core principles of Angular MVC architecture to create well-structured and maintainable Angular applications.

    Below are some best practices to help implement the MVC architecture in your Angular projects, reducing boilerplate code where possible and effectively organizing code :

    Use Services for the Model:

    • Keep business logic in services, not components.

    • Services interact with data sources, manipulate data, and expose data to the components.

    Create components for the view and controller:

    • Components are responsible for both displaying the view and handling user input (controller functionality).

    • Use Angular’s dependency injection system to bring in services that handle business logic.

    Modularize Your Code:

    • Divide your Angular application into logical modules, ensuring that each module has a specific responsibility (e.g., a user module for user-related functionality).

    Use directives for view modifications:

    Follow Angular’s folder structure:

    • Organize your project into appropriate folders, such as models, services, components, and views.

    Conclusion

    In conclusion, MVC model binding in Angular provides a robust framework for managing data flow between the model and view, making it easier to develop complex applications quickly and efficiently, which is important for unit testing and helps structure the application effectively. By understanding the core concepts of the MVC pattern and leveraging Angular’s data binding techniques, developers can create well-structured, maintainable, and dynamic web applications.

    Angular’s component-based architecture, combined with its powerful data binding system, helps to streamline the development process and makes it easier to organize code and separate concerns between different Angular components, showcasing that it is a powerful JavaScript framework. As you implement these techniques in your latest version of Angular applications, you’ll be able to create applications that are both scalable and easy to manage.
